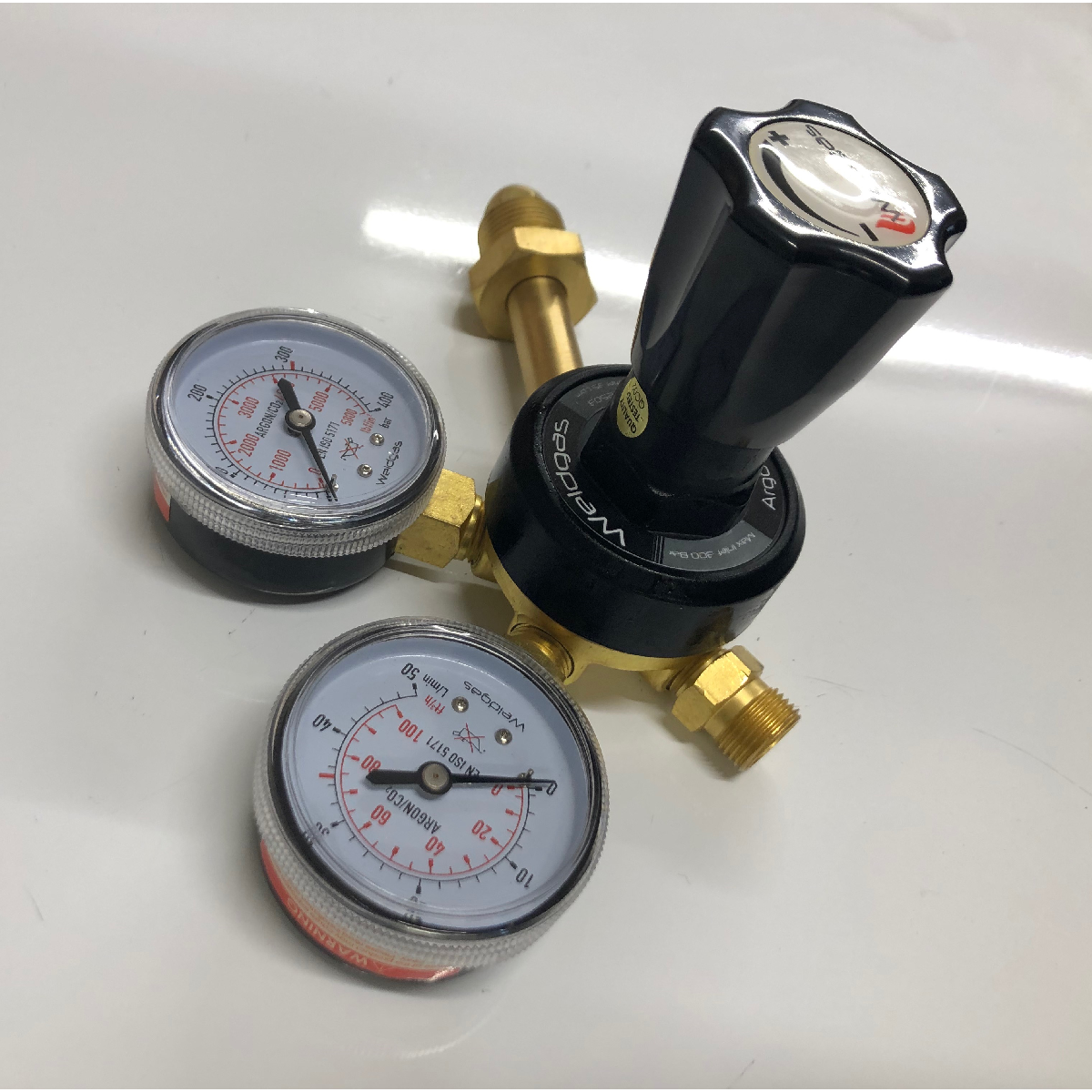

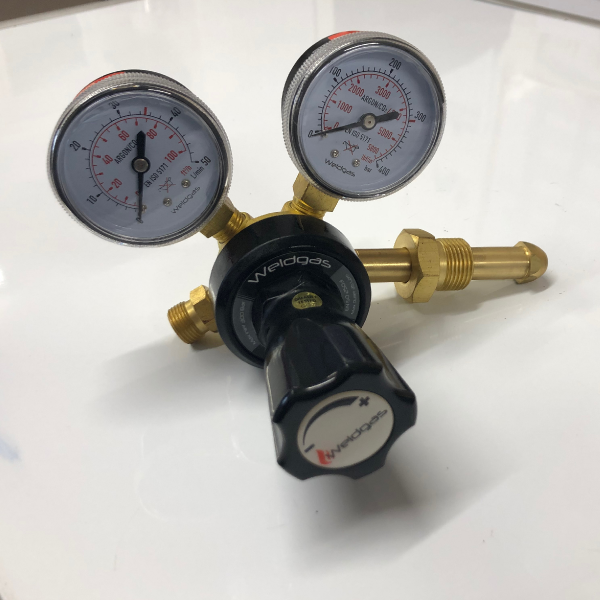

Argon Regulator

SGS REGARGON

  • Twin Gauge regulator, allows the user to read both cylinder pressure and output flow rate

  • Single stage, simple adjustment to set the perfect gas flow

  • Suitable for MIG and TIG welding

  • Suitable for both Pure and Argon Mix

Description

SGS Gases Argon Regulator is perfect for both the hobby and professional market, a cost effective regulator which allows the user accurate control over their gas usage. Capable of outputting a flow rate of up to 35LPM our argon regulator is suitable for both MIG and TIG welding applications.

Rated for a maximum input pressure of 300 BAR these regulators are a safe and leak-free way to manage the useable pressure for both Pure Argon and CO2/Argon Mix cylinders.

The industry standard 5/8” BSP input will fit all standard fitment open and RPV argon cylinder valves. With a 3/8” BSP output these can be used with a range of accessories such as our 0-15 <Link to Flow15> and 0-40 <Link to Flow40> Flow meters for added accuracy as well as adapters for both open hoses <Link to ADAPTTAIL> and mini-mig push fittings <Link to ADAPTMINI>

Compatibility

10L 5% CO2/Argon Mix
20L 5% CO2/Argon Mix
30L 5% CO2/Argon Mix
50L 5% CO2/Argon Mix

10L 10% CO2/Argon Mix
20L 10% CO2/Argon Mix
30L 10% CO2/Argon Mix
50L 10% CO2/Argon Mix

10L 15% CO2/Argon Mix
20L 15% CO2/Argon Mix
30L 15% CO2/Argon Mix
50L 15% CO2/Argon Mix

10L Pure Argon
20L Pure Argon
30L Pure Argon
50L Pure Argon

10L Argolium

Technical

Part Number: SGS REGARGON

Previous Part Number: SGS I1

Max Input: 300BAR

Max Output: 35LPM

Cylinder Connection: 5/8” BSP R/H

Output Connection: 3/8” BSP R/H

Weight: 1.3Kg
