Oxygen Regulator

Oxygen Regulator

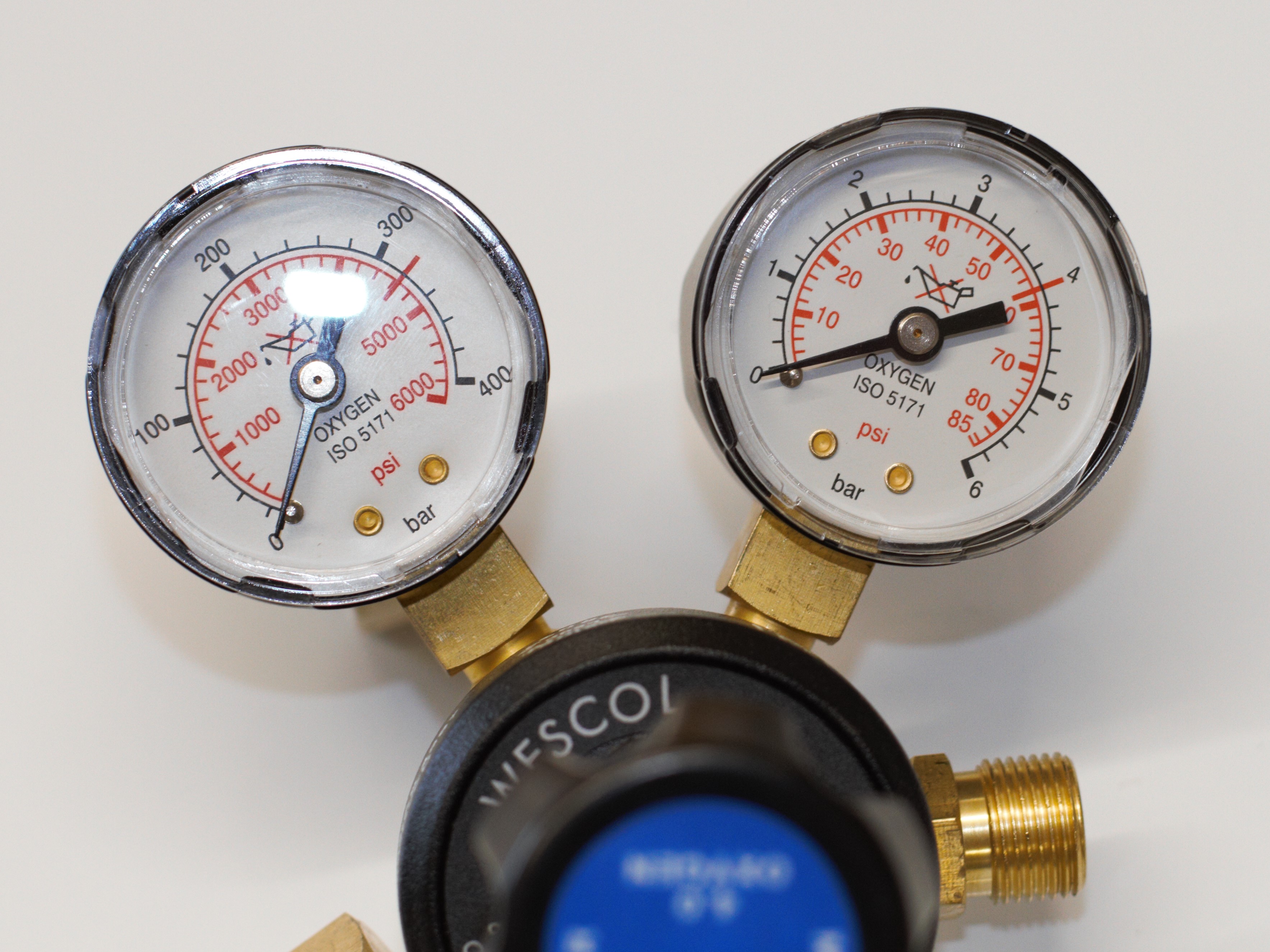

  • Twin Gauge regulator, allows the user to read both cylinder pressure and output pressure
  • Single stage, simple adjustment to set the perfect gas flow
  • Suitable for OxyFuel applications
  • Oil and grease free


SGS Gases Oxygen Regulator is perfect for both the hobby and professional market, a cost effective regulator which allows the user accurate control over their gas usage. Capable of outputting pressures of 0-4 BAR our oxygen regulator is perfect for accurate fine control over your Oxy Fuel setup.

Rated for a maximum input pressure of 300 BAR these regulators are a safe and leak-free way to manage the useable pressure for our range of Oxygen cylinders.

The industry standard 5/8” BSP input will fit all standard fitment open and RPV oxygen cylinder valves. With a 3/8” BSP output these should be used in conjunction with our Oxygen FBA to safeguard against dangerous flashback should a hose become damaged whilst in use.


  • 10L Oxygen
  • 20L Oxygen
  • 30L Oxygen
  • 50L Oxygen



Previous Part Number: SGS L2

Max Input: 300BAR

Max Output: 4BAR

Cylinder Connection: 5/8” BSP R/H

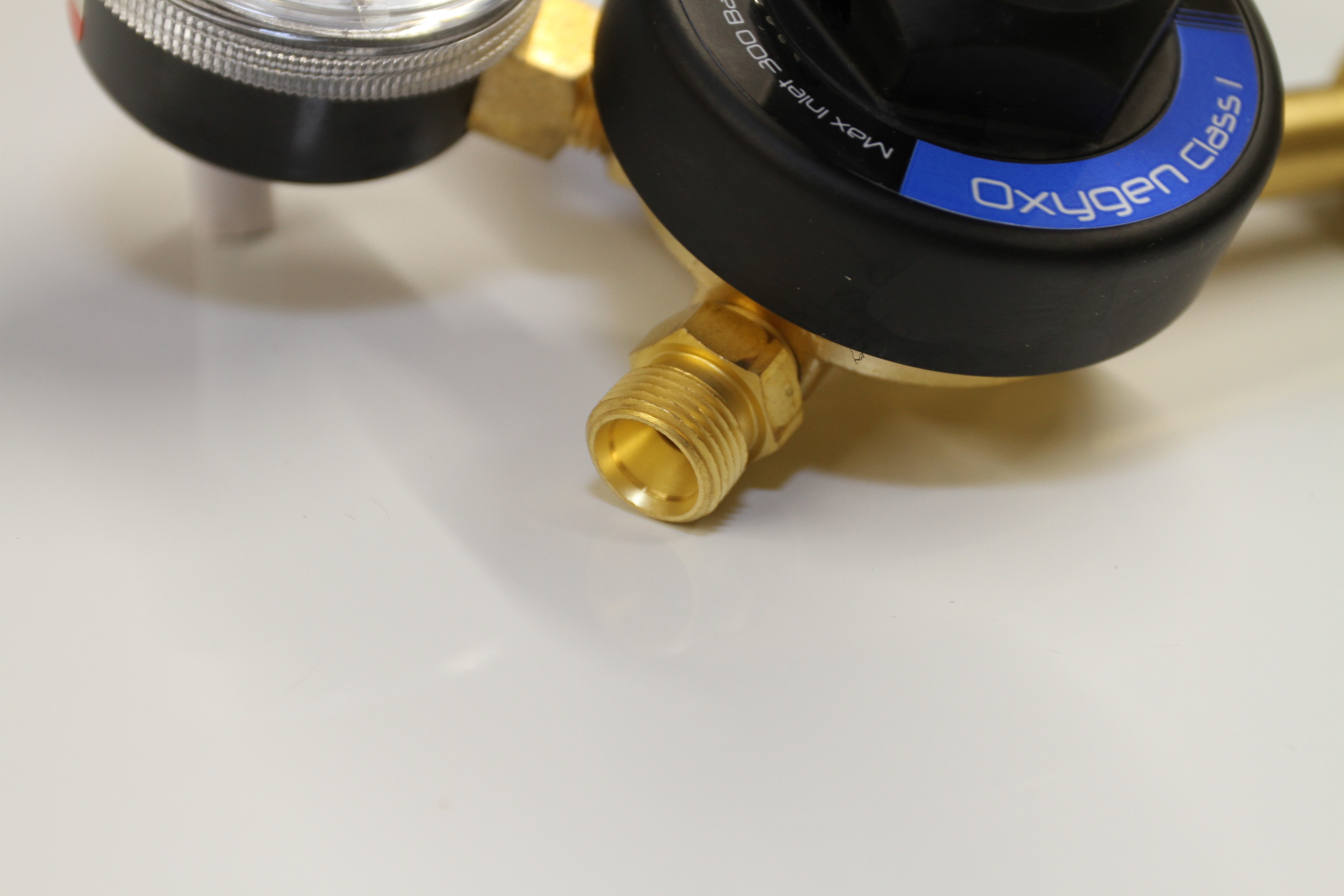

Output Connection: 3/8” BSP R/H

Weight: 1.33 Kg
